🔥23 种设计模式藏着的商业智慧💡
一个创业公司的成长故事
张伟从大厂辞职创业时，怀揣着改变世界的梦想，却不知前方有多少坑等着他。起初，他需要快速搭建团队：用"工厂模式"批量招聘基础员工，通过"抽象工厂"按岗位分级引进人才，像"建造者模式"一样精心组建完整项目组，遇到核心人才就用"原型模式"快速复制，而CEO职位自然要像"单例模式"确保唯一。当公司扩张到200人时，架构升级迫在眉睫：用"适配器模式"兼容并购公司的系统，通过"桥接模式"让多业务线独立发展，采用"组合模式"构建树形组织架构，用"装饰器模式"动态调整员工待遇，建立"外观模式"统一对外接口，实施"享元模式"共享办公资源，并引入"代理模式"处理CEO事务。当日活用户突破100万后，高效运营成为关键：建立"责任链模式"处理多级审批，用"命令模式"封装任务指令，开发"解释器模式"解析规则引擎，通过"迭代器模式"发放全员奖金，采用"中介者模式"协调跨部门合作，建立"备忘录模式"应对系统灾难，实施"观察者模式"推送政策通知，用"状态模式"管理请假流程，灵活切换"策略模式"调整营销策略，标准化"模板方法模式"规范入职流程，最后用"访问者模式"实现差异化统计。这一路走来，张伟发现，那些看似枯燥的设计模式，实则蕴含着深刻的商业智慧。
设计模式与创业场景对应流程图

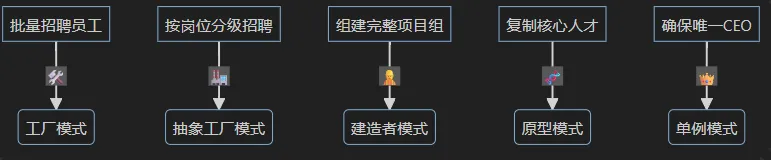

第一阶段：团队搭建——创建型

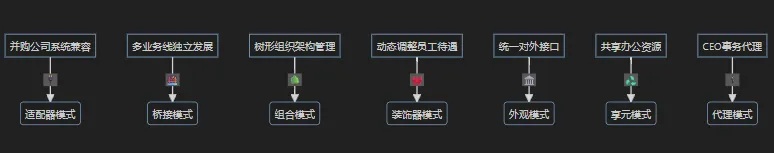

第二阶段：架构升级——结构性

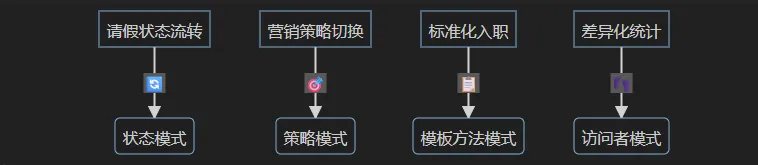

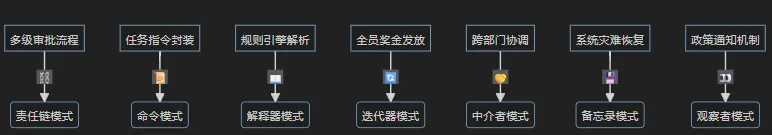

第三阶段：高效运营——行为型
23种设计模式详解
1. 工厂模式 - 批量招聘员工
场景：需要快速批量生产相同类型的员工对象
javapublic class EmployeeFactory {
public Employee createEmployee(String type) {
if ("developer".equals(type)) {
return new Developer();
} else if ("designer".equals(type)) {
return new Designer();
}
return null;
}
}
// 使用
EmployeeFactory factory = new EmployeeFactory();
Employee dev1 = factory.createEmployee("developer");
Employee designer1 = factory.createEmployee("designer");
2. 抽象工厂模式 - 按岗位分级招聘
场景：需要按不同级别(初级/高级)招聘完整团队
javainterface TeamFactory {
Developer createDeveloper();
Designer createDesigner();
Tester createTester();
}
class JuniorTeamFactory implements TeamFactory {
public Developer createDeveloper() { return new JuniorDeveloper(); }
public Designer createDesigner() { return new JuniorDesigner(); }
public Tester createTester() { return new JuniorTester(); }
}
class SeniorTeamFactory implements TeamFactory {
public Developer createDeveloper() { return new SeniorDeveloper(); }
// ...其他高级职位创建方法
}
interface Developer { String getRole(); }
interface Designer { String getRole(); }
interface Tester { String getRole(); }
class JuniorDeveloper implements Developer {
public String getRole() { return "初级开发"; }
}
class SeniorDeveloper implements Developer {
public String getRole() { return "高级开发"; }
}
class JuniorDesigner implements Designer {
public String getRole() { return "初级设计"; }
}
class SeniorDesigner implements Designer {
public String getRole() { return "高级设计"; }
}
class JuniorTester implements Tester {
public String getRole() { return "初级测试"; }
}
class SeniorTester implements Tester {
public String getRole() { return "高级测试"; }
}
// 抽象工厂模式使用示例
public class TeamBuildingDemo {
public static void main(String[] args) {
// 1. 选择团队级别
TeamFactory juniorFactory = new JuniorTeamFactory();
TeamFactory seniorFactory = new SeniorTeamFactory();
// 2. 组建初级团队
System.out.println("=== 组建初级团队 ===");
buildTeam(juniorFactory);
// 3. 组建高级团队
System.out.println("\n=== 组建高级团队 ===");
buildTeam(seniorFactory);
}
// 通用团队构建方法
static void buildTeam(TeamFactory factory) {
Developer dev = factory.createDeveloper();
Designer designer = factory.createDesigner();
Tester tester = factory.createTester();
System.out.println("团队成员：" +
dev.getRole() + " + " +
designer.getRole() + " + " +
tester.getRole());
}
}
3. 建造者模式 - 组建完整项目组
场景：逐步构建复杂项目团队对象
javapublic class ProjectTeam {
private List<Developer> developers;
private List<Designer> designers;
// ...其他成员
public static class Builder {
private ProjectTeam team = new ProjectTeam();
public Builder addDeveloper(Developer dev) {
team.developers.add(dev);
return this;
}
public Builder addDesigner(Designer designer) {
team.designers.add(designer);
return this;
}
public ProjectTeam build() {
return team;
}
}
}
// 使用
ProjectTeam team = new ProjectTeam.Builder()
.addDeveloper(new SeniorDeveloper())
.addDesigner(new SeniorDesigner())
.build();
4. 原型模式 - 复制核心人才
场景：快速复制优秀员工模板
javapublic abstract class Employee implements Cloneable {
protected String name;
protected String position;
public Employee clone() {
try {
return (Employee) super.clone();
} catch (CloneNotSupportedException e) {
return null;
}
}
}
// 使用
Employee starEmployee = new StarDeveloper();
Employee clone1 = starEmployee.clone();
clone1.setName("Clone Dev 1");
5. 单例模式 - 确保唯一CEO
场景：保证公司只有一个CEO实例
javapublic class CEO {
private static CEO instance;
private CEO() {}
public static CEO getInstance() {
if (instance == null) {
synchronized (CEO.class) {
if (instance == null) {
instance = new CEO();
}
}
}
return instance;
}
}
// 使用
CEO ceo1 = CEO.getInstance();
CEO ceo2 = CEO.getInstance();
System.out.println(ceo1 == ceo2); // true
6. 适配器模式 - 并购公司系统兼容
场景：让不同公司系统能够协同工作
javainterface OurSystem {
void processData(String data);
}
class AcquiredSystem {
void handleData(XMLData data) { /*...*/ }
}
class SystemAdapter implements OurSystem {
private AcquiredSystem acquiredSystem;
public SystemAdapter(AcquiredSystem system) {
this.acquiredSystem = system;
}
public void processData(String data) {
XMLData xml = convertToXML(data);
acquiredSystem.handleData(xml);
}
private XMLData convertToXML(String data) { /*...*/ }
}
class XMLData {
// 假设这是被适配系统需要的XML数据结构
}
class SystemAdapter implements OurSystem {
private AcquiredSystem acquiredSystem;
public SystemAdapter(AcquiredSystem system) {
this.acquiredSystem = system;
}
public void processData(String data) {
System.out.println("适配器：将字符串转换为XML");
XMLData xml = convertToXML(data);
acquiredSystem.handleData(xml);
}
private XMLData convertToXML(String data) {
System.out.println("转换数据: " + data + " → XML格式");
return new XMLData();
}
}
// 适配器模式使用示例
public class AdapterDemo {
public static void main(String[] args) {
// 1. 创建被适配的旧系统
AcquiredSystem oldSystem = new AcquiredSystem();
// 2. 创建适配器（包装旧系统）
OurSystem adaptedSystem = new SystemAdapter(oldSystem);
// 3. 使用新接口调用旧系统
System.out.println("=== 数据处理 ===");
adaptedSystem.processData("JSON格式数据");
}
}
7. 桥接模式 - 多业务线独立发展
场景：将业务抽象与实现解耦
javaabstract class BusinessLine {
protected Product product;
public BusinessLine(Product product) {
this.product = product;
}
abstract void operate();
}
interface Product {
void produce();
}
class ECommerceLine extends BusinessLine {
public ECommerceLine(Product product) {
super(product);
}
void operate() {
System.out.println("电商业务线运营:");
product.produce();
}
}
class PhysicalProduct implements Product {
public void produce() {
System.out.println("生产实体商品");
}
}
class DigitalProduct implements Product {
public void produce() {
System.out.println("生成数字商品");
}
}
class CloudServiceLine extends BusinessLine {
public CloudServiceLine(Product product) {
super(product);
}
void operate() {
System.out.println("云服务业务线运营:");
product.produce();
}
}
// 桥接模式使用示例
public class BridgeDemo {
public static void main(String[] args) {
// 1. 创建具体产品
Product physical = new PhysicalProduct();
Product digital = new DigitalProduct(); // 假设有DigitalProduct实现类
// 2. 创建业务线并组合产品
BusinessLine ecommerce = new ECommerceLine(physical);
BusinessLine cloud = new CloudServiceLine(digital); // 假设有CloudServiceLine实现类
// 3. 运营业务线
System.out.println("=== 业务运营 ===");
ecommerce.operate();
System.out.println("---");
cloud.operate();
}
}
8. 组合模式 - 树形组织架构管理
场景：统一处理单个员工和部门
javainterface OrganizationComponent {
void display();
}
class Employee implements OrganizationComponent {
private String name;
public void display() {
System.out.println("员工: " + name);
}
}
class Department implements OrganizationComponent {
private List<OrganizationComponent> members = new ArrayList<>();
public void add(OrganizationComponent comp) {
members.add(comp);
}
public void display() {
for (OrganizationComponent comp : members) {
comp.display();
}
}
}
class Employee implements OrganizationComponent {
private String name;
public Employee(String name) {
this.name = name;
}
public void display() {
System.out.println("员工: " + name);
}
public void add(OrganizationComponent comp) {
throw new UnsupportedOperationException("员工不能添加成员");
}
public void remove(OrganizationComponent comp) {
throw new UnsupportedOperationException("员工不能移除成员");
}
}
class Department implements OrganizationComponent {
private String name;
private List<OrganizationComponent> members = new ArrayList<>();
public Department(String name) {
this.name = name;
}
public void display() {
System.out.println("\n部门: " + name);
for (OrganizationComponent comp : members) {
comp.display();
}
}
public void add(OrganizationComponent comp) {
members.add(comp);
}
public void remove(OrganizationComponent comp) {
members.remove(comp);
}
}
// 组合模式使用示例
public class OrganizationDemo {
public static void main(String[] args) {
// 1. 创建员工个体
OrganizationComponent dev1 = new Employee("张三（前端开发）");
OrganizationComponent dev2 = new Employee("李四（后端开发）");
OrganizationComponent designer = new Employee("王五（UI设计师）");
// 2. 创建部门组合
OrganizationComponent techDepartment = new Department("技术部");
techDepartment.add(dev1);
techDepartment.add(dev2);
techDepartment.add(designer);
// 3. 创建跨部门项目组
OrganizationComponent projectTeam = new Department("A项目组");
projectTeam.add(techDepartment);
projectTeam.add(new Employee("赵六（产品经理）"));
projectTeam.add(new Employee("钱七（市场专员）"));
// 4. 显示完整组织架构
System.out.println("=== 公司组织架构 ===");
projectTeam.display();
// 5. 创业公司特色：动态调整组织
System.out.println("\n=== 架构调整后 ===");
techDepartment.remove(designer); // 设计师调岗
projectTeam.add(new Employee("孙八（新招实习生）"));
projectTeam.display();
}
}
9. 装饰器模式 - 动态调整员工待遇
场景：动态添加员工福利
javainterface Employee {
double getSalary();
String getBenefits();
}
class BasicEmployee implements Employee {
public double getSalary() { return 10000; }
public String getBenefits() { return "基本社保"; }
}
abstract class EmployeeDecorator implements Employee {
protected Employee employee;
public EmployeeDecorator(Employee employee) {
this.employee = employee;
}
}
class BonusDecorator extends EmployeeDecorator {
public BonusDecorator(Employee employee) {
super(employee);
}
public double getSalary() {
return employee.getSalary() + 2000;
}
public String getBenefits() {
return employee.getBenefits() + ", 季度奖金";
}
}
class GymMembershipDecorator extends EmployeeDecorator {
public GymMembershipDecorator(Employee employee) {
super(employee);
}
public String getBenefits() {
return employee.getBenefits() + ", 健身房会员";
}
}
class StockOptionDecorator extends EmployeeDecorator {
public StockOptionDecorator(Employee employee) {
super(employee);
}
public double getSalary() {
return employee.getSalary() + 5000; // 股票期权价值
}
public String getBenefits() {
return employee.getBenefits() + ", 股票期权";
}
}
// 装饰器模式使用示例
public class EmployeeBenefitsDemo {
public static void main(String[] args) {
// 1. 创建基础员工
Employee entryLevel = new BasicEmployee();
System.out.println("初级员工: 薪资=" + entryLevel.getSalary() +
", 福利=" + entryLevel.getBenefits());
// 2. 添加奖金装饰器
Employee withBonus = new BonusDecorator(entryLevel);
System.out.println("\n+奖金后: 薪资=" + withBonus.getSalary() +
", 福利=" + withBonus.getBenefits());
// 3. 创业公司特色：叠加多重福利
Employee fullPackage = new StockOptionDecorator(
new GymMembershipDecorator(
new BonusDecorator(entryLevel)));
System.out.println("\n豪华套餐: 薪资=" + fullPackage.getSalary() +
", 福利=" + fullPackage.getBenefits());
}
}
10. 外观模式 - 统一对外接口
场景：简化复杂系统对外接口
javaclass CompanyFacade {
private HRSystem hr;
private FinanceSystem finance;
private ProductSystem product;
public CompanyFacade() {
hr = new HRSystem();
finance = new FinanceSystem();
product = new ProductSystem();
}
public void newHireProcess(String name) {
hr.registerEmployee(name);
finance.setupSalaryAccount(name);
product.assignStarterProject(name);
}
}
// 使用
CompanyFacade facade = new CompanyFacade();
facade.newHireProcess("张三");
11. 享元模式 - 共享办公资源
场景：共享可复用的办公设备
javaclass OfficeResource {
private final String resourceType;
public OfficeResource(String type) {
this.resourceType = type;
}
void use(String employeeName) {
System.out.println(employeeName + " 使用 " + resourceType);
}
}
class ResourceFactory {
private Map<String, OfficeResource> resources = new HashMap<>();
public OfficeResource getResource(String type) {
OfficeResource resource = resources.get(type);
if (resource == null) {
resource = new OfficeResource(type);
resources.put(type, resource);
}
return resource;
}
}
// 使用
ResourceFactory factory = new ResourceFactory();
OfficeResource printer = factory.getResource("打印机");
printer.use("李四");
12. 代理模式 - CEO事务代理
场景：控制对CEO的访问
javainterface CEO {
void handleRequest(String request);
}
class RealCEO implements CEO {
public void handleRequest(String request) {
System.out.println("CEO处理请求: " + request);
}
}
class CEOProxy implements CEO {
private RealCEO realCEO;
public void handleRequest(String request) {
if (realCEO == null) {
realCEO = new RealCEO();
}
if (isImportant(request)) {
realCEO.handleRequest(request);
} else {
System.out.println("代理过滤请求: " + request);
}
}
private boolean isImportant(String request) {
return request.contains("重要");
}
}
// 代理模式使用示例
public class CEORequestDemo {
public static void main(String[] args) {
// 1. 创建代理CEO（秘书过滤请求）
CEO ceoProxy = new CEOProxy();
// 2. 模拟各种请求场景
System.out.println("=== 普通工作日请求处理 ===");
ceoProxy.handleRequest("预约下周会议"); // 被过滤
ceoProxy.handleRequest("重要客户合作提案"); // 转交CEO
ceoProxy.handleRequest("员工团建方案审批"); // 被过滤
ceoProxy.handleRequest("重要融资谈判准备"); // 转交CEO
// 3. 创业公司特殊场景：直接访问真实CEO
System.out.println("\n=== 紧急情况直接联系CEO ===");
RealCEO realCEO = new RealCEO();
realCEO.handleRequest("服务器崩溃紧急处理");
}
}
13. 责任链模式 - 多级审批流程
场景：请求沿审批链传递
javaabstract class Approver {
protected Approver next;
public void setNext(Approver next) {
this.next = next;
}
public abstract void processRequest(LeaveRequest request);
}
class Manager extends Approver {
public void processRequest(LeaveRequest request) {
if (request.getDays() <= 3) {
System.out.println("经理批准 " + request);
} else if (next != null) {
next.processRequest(request);
}
}
}
class Director extends Approver {
public void processRequest(LeaveRequest request) {
if (request.getDays() <= 10) {
System.out.println("总监批准 " + request);
} else if (next != null) {
next.processRequest(request);
}
}
}
class CEO extends Approver {
public void processRequest(LeaveRequest request) {
if (request.getDays() <= 30) {
System.out.println("CEO批准 " + request);
} else {
System.out.println(request + " 超过权限，需要董事会决议");
}
}
}
class LeaveRequest {
private String name;
private int days;
private String reason;
public LeaveRequest(String name, int days, String reason) {
this.name = name;
this.days = days;
this.reason = reason;
}
public int getDays() { return days; }
@Override
public String toString() {
return String.format("[%s 请假%d天 原因：%s]", name, days, reason);
}
}
// 责任链模式使用示例
public class LeaveApprovalDemo {
public static void main(String[] args) {
// 1. 创建审批链（经理 -> 总监 -> CEO）
Approver manager = new Manager();
Approver director = new Director();
Approver ceo = new CEO(); // 假设有CEO审批类
manager.setNext(director);
director.setNext(ceo);
// 2. 创建不同天数的请假请求
LeaveRequest shortLeave = new LeaveRequest("张三", 2, "感冒休息");
LeaveRequest mediumLeave = new LeaveRequest("李四", 5, "参加婚礼");
LeaveRequest longLeave = new LeaveRequest("王五", 15, "海外旅行");
// 3. 提交审批
System.out.println("=== 请假审批开始 ===");
manager.processRequest(shortLeave);
System.out.println("---");
manager.processRequest(mediumLeave);
System.out.println("---");
manager.processRequest(longLeave);
}
}
14. 命令模式 - 任务指令封装
场景：将请求封装为对象
javainterface Command {
void execute();
}
class Task {
private String name;
public Task(String name) {
this.name = name;
}
public void complete() {
System.out.println("完成任务: " + name);
}
}
class TaskCommand implements Command {
private Task task;
public TaskCommand(Task task) {
this.task = task;
}
public void execute() {
task.complete();
}
}
class Scheduler {
private List<Command> commands = new ArrayList<>();
public void addCommand(Command cmd) {
commands.add(cmd);
}
public void run() {
for (Command cmd : commands) {
cmd.execute();
}
}
}
// 命令模式使用示例
public class CommandPatternDemo {
public static void main(String[] args) {
// 1. 创建任务调度器（Invoker）
Scheduler scheduler = new Scheduler();
// 2. 创建具体任务（Receiver）
Task task1 = new Task("设计登录页面");
Task task2 = new Task("开发用户API");
Task task3 = new Task("测试支付功能");
// 3. 将任务封装为命令对象
Command designCommand = new TaskCommand(task1);
Command developCommand = new TaskCommand(task2);
Command testCommand = new TaskCommand(task3);
// 4. 创业公司晨会布置任务
System.out.println("=== 晨会任务分配 ===");
scheduler.addCommand(designCommand);
scheduler.addCommand(developCommand);
// 5. 紧急插入新任务（灵活扩展）
scheduler.addCommand(testCommand);
// 6. 执行所有任务
System.out.println("=== 开始执行任务 ===");
scheduler.run();
// 7. 创业公司特色：撤销功能扩展
System.out.println("\n=== 添加撤销功能示例 ===");
Command undoableCommand = new TaskCommand(task1) {
@Override
public void execute() {
super.execute();
System.out.println("（此任务可撤销）");
}
};
scheduler.addCommand(undoableCommand);
scheduler.run();
}
}
15. 解释器模式 - 规则引擎解析
场景：解析业务规则语法
javainterface Expression {
boolean interpret(String context);
}
class TerminalExpression implements Expression {
private String data;
public TerminalExpression(String data) {
this.data = data;
}
public boolean interpret(String context) {
return context.contains(data);
}
}
class OrExpression implements Expression {
private Expression expr1;
private Expression expr2;
public OrExpression(Expression expr1, Expression expr2) {
this.expr1 = expr1;
this.expr2 = expr2;
}
public boolean interpret(String context) {
return expr1.interpret(context) || expr2.interpret(context);
}
}
// 使用: 构建规则 "VIP用户 或 订单金额大于1000"
Expression vip = new TerminalExpression("VIP用户");
Expression bigOrder = new TerminalExpression("订单>1000");
Expression rule = new OrExpression(vip, bigOrder);
System.out.println(rule.interpret("VIP用户")); // true
16. 迭代器模式 - 全员奖金发放
场景：遍历员工集合
javainterface EmployeeIterator {
boolean hasNext();
Employee next();
}
class EmployeeCollection {
private Employee[] employees;
public EmployeeCollection(Employee[] employees) {
this.employees = employees;
}
public EmployeeIterator createIterator() {
return new EmployeeArrayIterator(employees);
}
}
class EmployeeArrayIterator implements EmployeeIterator {
private Employee[] employees;
private int position = 0;
public EmployeeArrayIterator(Employee[] employees) {
this.employees = employees;
}
public boolean hasNext() {
return position < employees.length;
}
public Employee next() {
return employees[position++];
}
}
// 使用
EmployeeCollection collection = new EmployeeCollection(employees);
EmployeeIterator iterator = collection.createIterator();
while (iterator.hasNext()) {
payBonus(iterator.next());
}
17. 中介者模式 - 跨部门协调
场景：减少部门间直接依赖
javainterface Mediator {
void notify(Department sender, String event);
}
class ConcreteMediator implements Mediator {
private Development development;
private Marketing marketing;
public void setDepartments(Development dev, Marketing mkt) {
this.development = dev;
this.marketing = mkt;
}
public void notify(Department sender, String event) {
if (sender == development && event.equals("新版本发布")) {
marketing.prepareCampaign();
}
}
}
abstract class Department {
protected Mediator mediator;
public Department(Mediator mediator) {
this.mediator = mediator;
}
}
class Development extends Department {
public Development(Mediator mediator) {
super(mediator);
}
public void releaseVersion() {
System.out.println("开发部发布新版本");
mediator.notify(this, "新版本发布");
}
}
class Marketing extends Department {
public Marketing(Mediator mediator) {
super(mediator);
}
public void prepareCampaign() {
System.out.println("市场部准备标准推广方案");
}
}
class Finance extends Department {
public Finance(Mediator mediator) {
super(mediator);
}
}
// 使用示例
public class DepartmentCollaborationDemo {
public static void main(String[] args) {
// 1. 创建协调中心（中介者）
ConcreteMediator mediator = new ConcreteMediator();
// 2. 创建各部门并注册到中介者
Development devTeam = new Development(mediator);
Marketing mktTeam = new Marketing(mediator) {
public void prepareCampaign() {
System.out.println("市场部启动紧急推广计划：社交媒体+线下活动");
}
};
mediator.setDepartments(devTeam, mktTeam);
// 3. 创业公司典型协作场景
System.out.println("=== 新产品发布流程 ===");
devTeam.releaseVersion(); // 自动触发市场部行动
// 4. 扩展更多部门协作
System.out.println("\n=== 跨部门扩展 ===");
Finance finance = new Finance(mediator) {
public void budgetApproval() {
System.out.println("财务部批准营销预算");
mediator.notify(this, "预算批准");
}
};
mediator.setDepartments(devTeam, mktTeam); // 保持原有关系
// 动态响应
mediator.notify(finance, "预算批准"); // 模拟财务事件
// 5. 创业公司紧急协作场景
System.out.println("\n=== 危机处理 ===");
mediator.notify(devTeam, "系统崩溃"); // 需要扩展中介者处理逻辑
}
}
18. 备忘录模式 - 系统灾难恢复
场景：保存和恢复系统状态
javaclass SystemState {
private String dbVersion;
private String configHash;
public SystemState(String dbVersion, String configHash) {
this.dbVersion = dbVersion;
this.configHash = configHash;
}
public String getDbVersion() { return dbVersion; }
public String getConfigHash() { return configHash; }
}
class SystemMemento {
private SystemState state;
public SystemMemento(SystemState state) {
this.state = state;
}
public SystemState getState() {
return state;
}
}
class ProductionSystem {
private SystemState state;
public SystemMemento save() {
return new SystemMemento(state);
}
public void restore(SystemMemento memento) {
this.state = memento.getState();
}
}
// 使用示例
public class SystemBackupDemo {
public static void main(String[] args) {
// 1. 创建生产系统并设置初始状态
ProductionSystem productionSystem = new ProductionSystem();
SystemState initialState = new SystemState("MySQL-5.7", "config-v1.0");
productionSystem.restore(new SystemMemento(initialState));
// 2. 创建备份管理员（CareTaker角色）
List<SystemMemento> backupArchives = new ArrayList<>();
// 3. 周一早上备份系统
System.out.println("=== 周一 09:00 进行系统备份 ===");
backupArchives.add(productionSystem.save());
printSystemState(productionSystem);
// 4. 周二系统升级
System.out.println("\n=== 周二 系统升级到 v2.0 ===");
productionSystem.restore(new SystemMemento(
new SystemState("MySQL-8.0", "config-v2.0")));
printSystemState(productionSystem);
// 5. 周三发现升级问题，决定回滚
System.out.println("\n=== 周三 发现兼容性问题，准备回滚 ===");
System.out.println("回滚前状态:");
printSystemState(productionSystem);
System.out.println("\n执行回滚到周一备份...");
productionSystem.restore(backupArchives.get(0));
System.out.println("回滚后状态:");
printSystemState(productionSystem);
// 6. 创业公司特殊场景：灾难恢复演练
System.out.println("\n=== 灾难恢复演练 ===");
SystemMemento emergencyBackup = productionSystem.save();
// 模拟系统崩溃
productionSystem.restore(new SystemMemento(
new SystemState("Corrupted-DB", "Broken-Config")));
System.out.println("模拟崩溃后状态:");
printSystemState(productionSystem);
// 从紧急备份恢复
System.out.println("\n从紧急备份恢复...");
productionSystem.restore(emergencyBackup);
System.out.println("恢复后状态:");
printSystemState(productionSystem);
}
private static void printSystemState(ProductionSystem system) {
// 通过反射获取状态（实际项目中应该有getState方法）
try {
Field stateField = ProductionSystem.class.getDeclaredField("state");
stateField.setAccessible(true);
SystemState state = (SystemState) stateField.get(system);
System.out.println("当前系统状态: " +
"数据库=" + state.getDbVersion() +
", 配置=" + state.getConfigHash());
} catch (Exception e) {
e.printStackTrace();
}
}
}
19. 观察者模式 - 政策通知机制
场景：通知所有员工政策变更
javainterface Observer {
void update(String policy);
}
interface Subject {
void register(Observer o);
void unregister(Observer o);
void notifyObservers();
}
class HRDepartment implements Subject {
private List<Observer> employees = new ArrayList<>();
private String newPolicy;
public void register(Observer o) {
employees.add(o);
}
public void unregister(Observer o) {
employees.remove(o);
}
public void notifyObservers() {
for (Observer o : employees) {
o.update(newPolicy);
}
}
public void setNewPolicy(String policy) {
this.newPolicy = policy;
notifyObservers();
}
}
class Employee implements Observer {
private String name;
public Employee(String name) {
this.name = name;
}
public void update(String policy) {
System.out.println(name + " 收到新政策: " + policy);
}
}
// 使用示例
public class PolicyNotificationDemo {
public static void main(String[] args) {
// 1. 创建HR部门（主题）
HRDepartment hr = new HRDepartment();
// 2. 员工注册为观察者
Employee emp1 = new Employee("张伟（CEO）");
Employee emp2 = new Employee("李娜（CTO）");
Employee emp3 = new Employee("王强（开发）");
hr.register(emp1);
hr.register(emp2);
hr.register(emp3);
// 3. 发布新政策（自动通知所有员工）
System.out.println("=== 发布考勤新规 ===");
hr.setNewPolicy("即日起实施弹性工作制");
// 4. 新员工入职后注册
Employee emp4 = new Employee("赵敏（新晋设计师）");
hr.register(emp4);
// 5. 发布第二个政策（新人也会收到）
System.out.println("\n=== 发布福利政策 ===");
hr.setNewPolicy("新增年度健康体检福利");
// 6. 员工离职取消注册
hr.unregister(emp2);
// 7. 发布第三个政策（离职员工不再接收）
System.out.println("\n=== 发布培训计划 ===");
hr.setNewPolicy("下周举行技术分享会");
// 8. 创业公司特殊场景：紧急全员通知
System.out.println("\n=== 紧急通知 ===");
hr.setNewPolicy("⚠️ 明日服务器维护，全员远程办公");
}
}
20. 状态模式 - 请假状态流转
场景：根据状态改变行为
javainterface LeaveState {
void handleRequest(LeaveRequest request);
}
class PendingState implements LeaveState {
public void handleRequest(LeaveRequest request) {
System.out.println("请假申请待审批");
request.setState(new ApprovedState());
}
}
class ApprovedState implements LeaveState {
public void handleRequest(LeaveRequest request) {
System.out.println("请假已批准");
}
}
class RejectedState implements LeaveState {
public void handleRequest(LeaveRequest request) {
System.out.println("请假被拒绝");
}
}
class LeaveRequest {
private LeaveState state;
public LeaveRequest() {
state = new PendingState();
}
public void setState(LeaveState state) {
this.state = state;
}
public void process() {
state.handleRequest(this);
}
}
// 使用示例
public class LeaveRequestDemo {
public static void main(String[] args) {
// 1. 员工提交请假申请
LeaveRequest request = new LeaveRequest();
System.out.println("=== 员工提交请假申请 ===");
request.process(); // 初始状态为待审批
// 2. 模拟审批通过场景
System.out.println("\n=== 经理审批通过 ===");
request.process(); // 自动转为批准状态
// 3. 新建一个被拒绝的案例
System.out.println("\n=== 另一个请假案例 ===");
LeaveRequest rejectedRequest = new LeaveRequest();
rejectedRequest.setState(new RejectedState()); // 直接设置为拒绝状态
rejectedRequest.process();
// 4. 创业公司特殊场景：CEO特批
System.out.println("\n=== CEO特批案例 ===");
LeaveRequest ceoRequest = new LeaveRequest();
ceoRequest.process(); // 初始状态
// 自定义直接批准状态（跳过经理审批）
ceoRequest.setState(new ApprovedState() {
@Override
public void handleRequest(LeaveRequest request) {
System.out.println("CEO特批通过");
}
});
ceoRequest.process();
}
}
21. 策略模式 - 营销策略切换
场景：运行时切换算法
javainterface MarketingStrategy {
void executeCampaign();
}
class SocialMediaStrategy implements MarketingStrategy {
public void executeCampaign() {
System.out.println("在社交媒体上开展营销活动");
}
}
class EmailStrategy implements MarketingStrategy {
public void executeCampaign() {
System.out.println("通过电子邮件开展营销活动");
}
}
class MarketingContext {
private MarketingStrategy strategy;
public void setStrategy(MarketingStrategy strategy) {
this.strategy = strategy;
}
public void execute() {
strategy.executeCampaign();
}
}
// 使用
MarketingContext context = new MarketingContext();
context.setStrategy(new SocialMediaStrategy());
context.execute();
context.setStrategy(new EmailStrategy());
context.execute();
22. 模板方法模式 - 标准化入职
场景：定义算法骨架
javaabstract class OnboardingProcess {
// 模板方法
public final void onboard() {
preparePaperwork();
setupWorkstation();
conductTraining();
if (needsTechnicalTraining()) {
conductTechnicalTraining();
}
completeProcess();
}
abstract void conductTraining();
void preparePaperwork() {
System.out.println("准备劳动合同和保密协议");
}
void setupWorkstation() {
System.out.println("设置办公桌和电脑");
}
boolean needsTechnicalTraining() {
return true;
}
void conductTechnicalTraining() {
System.out.println("进行技术培训");
}
void completeProcess() {
System.out.println("完成入职流程");
}
}
class DeveloperOnboarding extends OnboardingProcess {
void conductTraining() {
System.out.println("进行开发规范培训");
}
}
// 使用示例
public class OnboardingDemo {
public static void main(String[] args) {
System.out.println("=== 标准员工入职流程 ===");
OnboardingProcess standardProcess = new OnboardingProcess() {
void conductTraining() {
System.out.println("进行公司文化培训");
}
};
standardProcess.onboard();
System.out.println("\n=== 开发人员入职流程 ===");
OnboardingProcess devProcess = new DeveloperOnboarding();
devProcess.onboard();
System.out.println("\n=== 设计师入职流程（自定义技术培训） ===");
OnboardingProcess designerProcess = new OnboardingProcess() {
void conductTraining() {
System.out.println("进行设计规范培训");
}
// 重写钩子方法
boolean needsTechnicalTraining() {
return false; // 设计师不需要单独的技术培训
}
};
designerProcess.onboard();
}
}
23. 访问者模式 - 差异化统计
场景：对不同类型的员工执行不同操作
javainterface EmployeeVisitor {
void visit(Developer dev);
void visit(Designer designer);
void visit(Manager manager);
}
interface EmployeeElement {
void accept(EmployeeVisitor visitor);
}
class Developer implements EmployeeElement {
private int codeLines;
public Developer(int lines) {
this.codeLines = lines;
}
public int getCodeLines() {
return codeLines;
}
public void accept(EmployeeVisitor visitor) {
visitor.visit(this);
}
}
class PerformanceVisitor implements EmployeeVisitor {
public void visit(Developer dev) {
System.out.println("开发者绩效: " + dev.getCodeLines() + " 行代码");
}
public void visit(Designer designer) {
System.out.println("设计师绩效: 设计稿评估");
}
public void visit(Manager manager) {
System.out.println("经理绩效: 团队表现评估");
}
}
// 使用
EmployeeElement[] staff = {new Developer(5000), new Designer(), new Manager()};
PerformanceVisitor visitor = new PerformanceVisitor();
for (EmployeeElement employee : staff) {
employee.accept(visitor);
}
总结
23种设计模式就像23种商业智慧，贯穿了创业公司的整个生命周期：
-
创建型模式是团队组建的艺术：工厂模式批量生产、抽象工厂构建体系、建造者模式精心组装、原型模式快速复制、单例模式确保唯一。
-
结构型模式是架构设计的哲学：适配器兼容差异、桥接模式连接抽象与实现、组合模式统一整体与部分、装饰器动态扩展、外观模式简化接口、享元模式共享资源、代理模式控制访问。
-
行为型模式是高效运营的秘诀：责任链传递请求、命令模式封装操作、解释器解析规则、迭代器遍历集合、中介者解耦交互、备忘录保存状态、观察者通知变化、状态模式管理流转、策略模式切换算法、模板方法定义骨架、访问者差异化处理。
掌握这些模式，创业者就能像架构师设计系统一样设计自己的商业帝国，在复杂多变的创业环境中游刃有余。
设计模式顺口溜
工厂抽象建团队，原型单例保唯一
适配桥接组架构，装饰外观享代理
责任命令解规则，迭代中介备忘录
观察状态策略变，模板访问各不同
二十三种设计法，创业路上好帮手
目录
